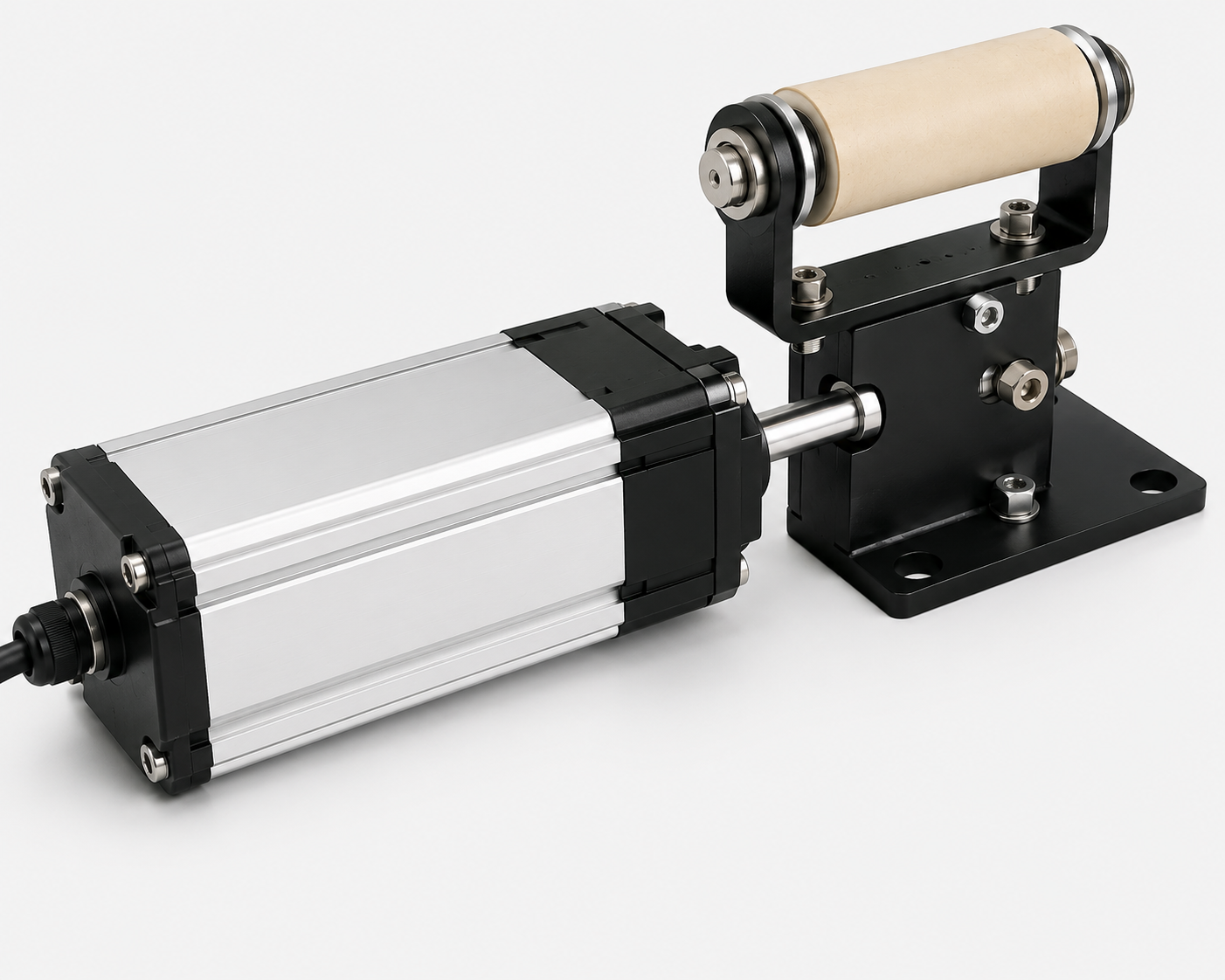

Web Guide Actuator for Printing and Packaging Machines
In printing, packaging, converting, laminating, slitting, and other roll-to-roll processes, even a small sideways movement of material can affect production quality. Misalignment may lead to uneven printing, incorrect cutting, poor lamination, material wastage, and repeated machine adjustments.
A Web Guide Actuator is an important part of an automatic web guiding system. It receives correction commands from the web guide controller and physically moves the guiding mechanism, roll, or unwind/rewind assembly to bring the material back into its correct position.
Venkinto Industries Pvt. Ltd. provides web-guiding, sensing, motion-control, and tension-control solutions for printing, packaging, converting, and web-processing industries. Its product range includes smart controllers, ultrasonic sensors, infrared sensors, CCD image sensors, and BLDC motor actuators.
What Is a Web Guide Actuator?
A Web Guide Actuator is a motion-control device used as part of a web edge guiding or web position control system.
During production, flexible materials such as paper, film, foil, labels, fabric, or other web materials can shift sideways. A sensor continuously monitors the material position. When it detects deviation, the controller determines how much correction is required and sends a command to the actuator.
The actuator then moves the relevant machine section in the required direction to restore proper web alignment.
A typical web guiding arrangement includes:
- Web guide sensor
- Web guide controller
- Web guide actuator
- Mechanical guiding structure
- Moving web material
Why Is a Web Guide Actuator Important?
The actuator performs the actual mechanical correction in a web guiding system.
A highly accurate sensor and controller cannot maintain alignment if the actuator cannot respond correctly to their commands.
A properly selected actuator can help achieve:
- Accurate lateral correction
- Stable material movement
- Faster response to web deviation
- Consistent production
- Reduced operator adjustments
- Better print and converting accuracy
- Lower material wastage
- Improved process reliability
- Roller alignment problems
- Changes in production speed
How Does a Web Guide Actuator Work?
Web Position Detection
A sensor continuously checks the position of the moving material.
Depending on the material and process, web guiding systems may use ultrasonic, infrared, CCD image, line, contrast, or other suitable sensing methods.
Controller Calculates the Error
When the material moves away from its required position, the controller receives information from the sensor.
It determines the direction and amount of correction required.
Actuator Makes the Correction
The controller sends a signal to the Web Guide Actuator.
The actuator moves the unwind stand, rewind assembly, guide frame, steering roll, or another mechanical element according to the web guiding configuration.
Venkinto describes web edge guiding as a method used to control lateral shifting of material width, with applications in printing, packaging, film production, slitting, lamination, woven sack processing, and related operations.
Accurate Web Alignment
Once the web returns to the required position, the actuator maintains the guide mechanism accordingly. This helps reduce edge deviation, uneven winding, printing errors, cutting issues, and unnecessary material waste.
Continuous Position Correction
The system keeps monitoring and correcting the material while the machine is running. This closed-loop process helps maintain stable alignment even when web speed, tension, or roll conditions change.
Main Benefits of Using a Web Guide Actuator
Accurate Web Positioning
The primary purpose of a Web Guide Actuator is to move the web guiding mechanism accurately whenever material deviation occurs.
Continuous correction helps maintain the required web position throughout production.
Reduced Material Waste
Poor alignment can result in rejected material during printing, cutting, slitting, coating, and laminating.
An automatic web guiding system helps minimize unnecessary lateral movement and can reduce material rejection caused by alignment errors.
Better Production Quality
Accurate material positioning is important for processes such as:
- Printing
- Coating
- Lamination
- Slitting
- Rewinding
- Die cutting
- Inspection
Maintaining consistent web position can improve repeatability in these processes.
Reduced Manual Adjustment
Without automatic guiding, operators may need to monitor material position and make repeated adjustments.
A Web Guide Actuator provides automatic mechanical correction based on sensor and controller feedback.
Support for Higher Production Speeds
As production speed increases, manual correction becomes more difficult.
An automated web guiding system can continuously monitor and correct web movement during machine operation.
Improved Machine Automation
A Web Guide Actuator can become part of a broader machine automation system that combines sensing, control, motion correction, and tension management.
Applications of Web Guide Actuators
Printing Machines
Accurate material alignment is especially important during printing.
Web Guide Actuators can be used with guiding systems in machines such as rotogravure and flexographic printing equipment.
Venkinto lists rotogravure printing machines and CI flexo printing machines among applications for its web-processing solutions.
Packaging Industry
Flexible packaging materials need consistent alignment during printing, coating, laminating, slitting, and rewinding.
Web guiding helps control side-to-side material movement throughout these operations.
Film Production
Film can shift laterally during extrusion, winding, and converting.
An actuator works with the web guide system to correct this movement automatically.
Paper and Film Slitting
During slitting, incorrect parent-roll alignment can affect finished roll width and edge quality.
Web guiding helps position the incoming material before it reaches the cutting section.
Lamination Machines
Precise alignment between multiple layers is important during lamination.
A web guide can help keep films, papers, or other substrates properly positioned during the process.
Coating Machines
Material position needs to remain controlled before and during the coating process.
An automatic guiding arrangement can help provide more consistent positioning.
Label Printing and Converting
Narrow web label machines require precise positioning during printing, inspection, die cutting, slitting, and rewinding.
Venkinto also identifies label printing and label slitting machines as web guiding applications.
Why Choose Venkinto Industries for Web Guide Actuator Solutions?
Venkinto Industries Pvt. Ltd. provides solutions for printing, packaging, converting, and web-processing industries from its operation facility in GIDC Vatva, Ahmedabad. Its web automation range includes controllers, ultrasonic and infrared sensors, CCD image sensors, BLDC motor actuators, tension controllers, magnetic powder brake and clutch products, and related automation solutions.
Customers looking for a Web Guide Actuator Supplier can discuss the complete application with Venkinto, including sensor selection, controller integration, actuator movement, web guiding arrangement, and machine retrofit requirements.
Considering the complete system helps achieve more reliable web alignment than selecting each component independently.
Conclusion
A Web Guide Actuator plays a key role in maintaining accurate material alignment in automated printing, packaging, converting, and web-processing machines.
Working together with a sensor and controller, the actuator physically corrects unwanted lateral movement of the web. This can support better production consistency, reduced material waste, improved alignment, and less operator intervention.
For proper performance, the actuator should be selected according to web width, material type, roll weight, machine speed, correction range, and guiding method.
Venkinto Industries Pvt. Ltd. provides web guiding and motion-control solutions for industrial web-processing applications. Businesses searching for a Web Guide Actuator Supplier can consider an application-based system that combines appropriate sensing, control, and actuator
Frequently Asked Questions
A Web Guide Actuator is a motion-control component that physically moves a web guiding mechanism to correct lateral material misalignment.
A sensor detects web deviation, the controller calculates the required correction, and the actuator moves the guiding mechanism in the required direction.
They are used in printing, packaging, film, paper, laminating, coating, slitting, rewinding, label, textile, and converting machinery.
The actuator performs the mechanical correction requested by the web guide controller.
Yes. In an unwind web guide system, the actuator can move the unwind arrangement to maintain correct material alignment.
Yes. Depending on machine design, actuator-based guiding can help maintain proper material position during rewinding.
Check web width, roll weight, machine speed, correction range, material type, guiding method, controller compatibility, and installation space.
Web guiding manages the side-to-side material position, while tension control manages the pulling force applied to the moving web.
Many existing machines can be retrofitted after checking the machine structure, web path, available space, and operating requirements.
Venkinto Industries provides web-guiding, sensing, actuator, and tension-control solutions for printing, packaging, converting, and web-processing applications, allowing customers to consider the complete web-control system rather than only one component.
